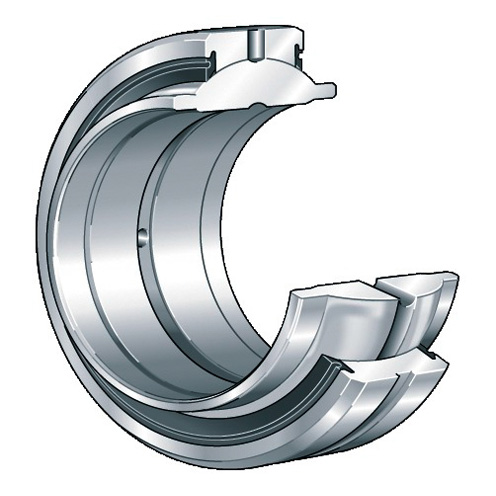

GE35-HO-2RS Elges® Spherical Plain Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE35-HO-2RS

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 35 mm

Closure Type

 N/A Sealed

Inner Ring Material

 N/A Steel

Inner Ring Width

 N/A 35 mm

Lubrication Type

 N/A Requires Lubrication

Misalignment Angle

 N/A 3 º

Operating Temperature Range

 N/A -30 to 130 ºC

Outer Ring Material

 N/A Chrome Steel

Outer Ring Width

 N/A 20 mm

Outside Diameter

 N/A 55 mm

Radial Dynamic Load Capacity

 N/A 80000 N

Radial Static Load Capacity

 N/A 400000 N

Weight

 N/A 0.63 lb
