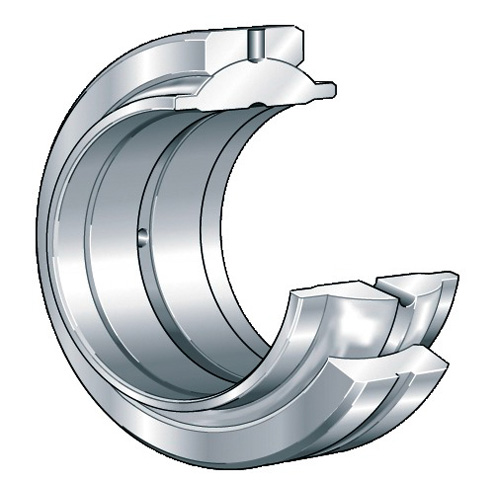

GE100-LO Elges® Spherical Plain Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE100-LO

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 100 mm

Closure Type

 N/A Open

Inner Ring Material

 N/A Steel

Inner Ring Width

 N/A 100 mm

Lubrication Type

 N/A Requires Lubrication

Misalignment Angle

 N/A 4 º

Operating Temperature Range

 N/A -60 to 200 ºC

Outer Ring Material

 N/A Steel

Outer Ring Width

 N/A 55 mm

Outside Diameter

 N/A 150 mm

Radial Dynamic Load Capacity

 N/A 610000 N

Radial Static Load Capacity

 N/A 3050000 N

Weight

 N/A 12.940 lb
