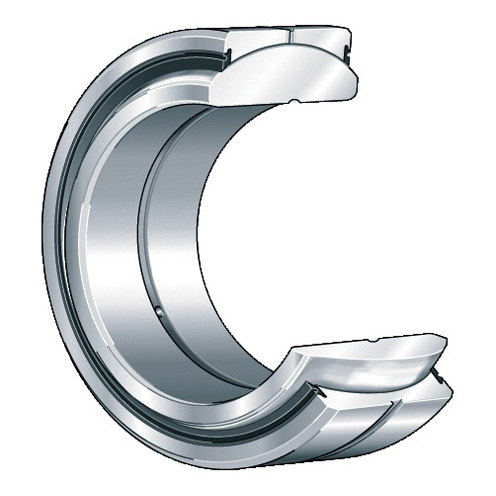

GE140-DO-2RS Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE140-DO-2RS

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 140 mm

Closure Type

 N/A Sealed

Inner Ring Material

 N/A Steel

Inner Ring Width

 N/A 90 mm

Lubrication Type

 N/A Requires Lubrication

Misalignment Angle

 N/A 7 º

Operating Temperature Range

 N/A -30 to 130 ºC

Outer Ring Material

 N/A Chrome Steel

Outer Ring Width

 N/A 70 mm

Outside Diameter

 N/A 210 mm

Radial Dynamic Load Capacity

 N/A 1080000 N

Radial Static Load Capacity

 N/A 5400000 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-1
