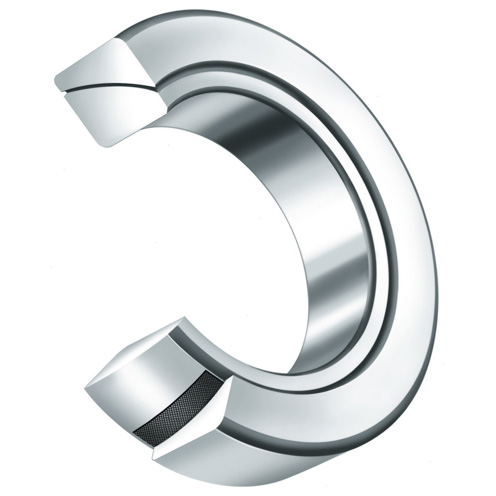

GE80-AW Elges® Spherical Plain Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE80-AW

Bearing Type

 N/A Thrust Bearing

Bore Diameter

 N/A 80 mm

Closure Type

 N/A Open

Inner Ring Material

 N/A Chrome-Plated Steel

Inner Ring Width

 N/A 42 mm

Lubrication Type

 N/A Maintenance Free/Self-Lubricating

Misalignment Angle

 N/A 6 º

Operating Temperature Range

 N/A -50 to 150 ºC

Outer Ring Material

 N/A Chrome Steel

Outer Ring Width

 N/A 36 mm

Outside Diameter

 N/A 180 mm

Race Material

 N/A Polytetrafluoroethylene (PTFE) Composite

Radial Dynamic Load Capacity

 N/A 3110000 N

Radial Static Load Capacity

 N/A 5180000 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-3

Weight

 N/A 8 lb
