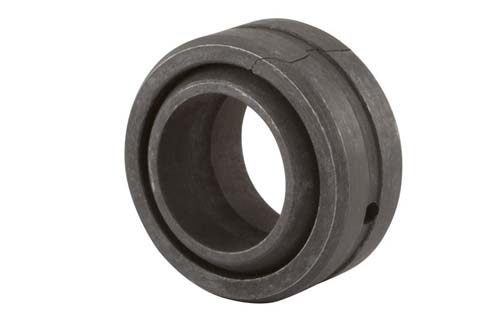

Item # 00096793, RBC® 1.08 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Specifications

Supplier Name	N/A RBC® Bearings
UPC Code	N/A 637400000783
Manufacturer Part Number	N/A B12L
Prop 65	N/A Yes
Axial Static Load Capacity	N/A 3900 lbf
Ball Diameter	N/A 1.08 in
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Unsealed
Bore Diameter	N/A 0.75 in
Closure Type	N/A Open
Inner Ring Material	N/A Chrome Steel
Inner Ring Width	N/A 0.656 in
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 14 º
Operating Temperature [Max]	N/A 350 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 0.562 in
Outside Diameter	N/A 1.25 in
Overall Width	N/A 0.6560 in
Radial Dynamic Load Capacity	N/A 5300 lbf
Radial Static Load Capacity	N/A 21200 lbf
Weight	N/A 0.12 lb

Applications

N/A Chain Conveyors Extractors Forklift Trucks Front End Loaders Haul Trucks Hydraulic Cranes Log Skidders Overhead Carriers Satellite Antennas Wind Turbines
