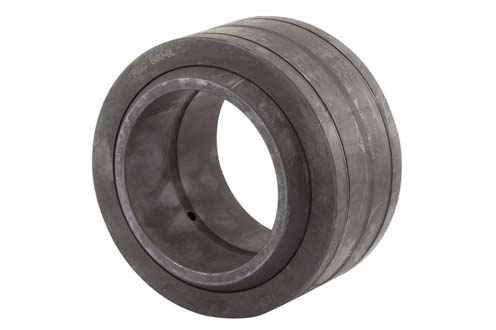

Item # 00097049, RBC® 5.0000 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A RBC® Bearings
UPC Code	N/A 637400002879
Manufacturer Part Number	N/A B809L
Axial Static Load Capacity	N/A 360900 lbf
Ball Diameter	N/A 7.19 in
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Radial
Bore Diameter	N/A 5.0000 in
Closure Type	N/A Open
Inner Ring Material	N/A Chrome Steel
Inner Ring Width	N/A 4.375 in
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 7 º
Operating Temperature [Max]	N/A 300 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 3.75 in
Outside Diameter	N/A 7.75 in
Overall Width	N/A 4.3750 in
Radial Dynamic Load Capacity	N/A 235900 lbf
Radial Static Load Capacity	N/A 943600 lbf
Weight	N/A 29.67 lb

N/A Clevis Ends Hydraulic Cylinder Ends Kingpin Assemblies Linkages Shock Absorber Assemblies Tie Rod Ends
