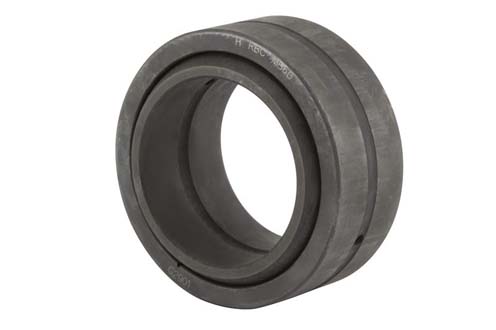

Item # 00135140, RBC® 1.9700 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A RBC® Bearings
UPC Code	N/A 637400019792
Manufacturer Part Number	N/A MB50
Axial Static Load Capacity	N/A 30 lbf
Ball Diameter	N/A 2.6400 in
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Radial, Metric
Bore Diameter	N/A 1.9700 in
Closure Type	N/A Open
Inner Ring Material	N/A Chrome Steel
Inner Ring Width	N/A 1.3800 in
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 7 º
Operating Temperature [Max]	N/A 300 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 1.1000 in
Outside Diameter	N/A 2.9500 in
Overall Width	N/A 1.3800 in
Radial Dynamic Load Capacity	N/A 36 lbf
Radial Static Load Capacity	N/A 181 lbf
Weight	N/A 0.910 lb

N/A Clevis Ends Hydraulic Cylinder Ends Kingpin Assemblies Linkages Shock Absorber Assemblies Tie Rod Ends
