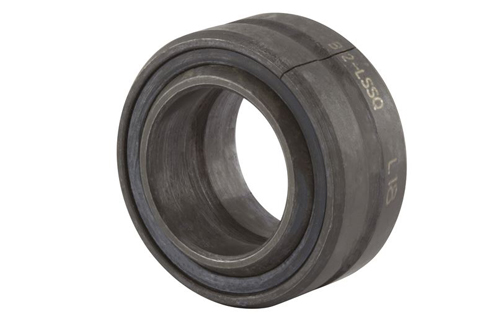

Item # 00142465, RBC® 0.7500 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A RBC® Bearings
Brands	N/A QuadLube®
UPC Code	N/A 637400000820
Manufacturer Part Number	N/A B12LSSQ
Axial Static Load Capacity	N/A 3900 lbf
Ball Diameter	N/A 1.08 in
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Quadlube
Bore Diameter	N/A 0.7500 in
Closure Type	N/A Sealed
Inner Ring Material	N/A Steel
Inner Ring Width	N/A 0.656 in
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 7 º
Operating Temperature Range	N/A -60 to 250 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 0.562 in
Outside Diameter	N/A 1.25 in
Overall Width	N/A 0.6560 in
Radial Dynamic Load Capacity	N/A 5300 lbf
Radial Static Load Capacity	N/A 21200 lbf
Weight	N/A 0.11 lb

N/A Clevis Ends Hydraulic Cylinder Ends Kingpin Assemblies Linkages Shock Absorber Assemblies Tie Rod Ends
