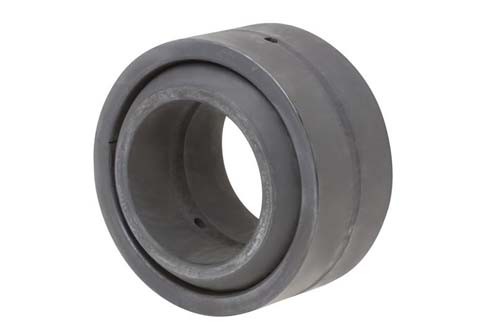

Item # 04755793, RBC® 2.7500 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A RBC® Bearings
UPC Code	N/A 637400000318
Manufacturer Part Number	N/A BH4448L
Axial Static Load Capacity	N/A 76300 lbf
Ball Diameter	N/A 4.3120 in
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Radial
Bore Diameter	N/A 2.7500 in
Closure Type	N/A Open
Inner Ring Width	N/A 2.7900 in
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 14 º
Operating Temperature [Max]	N/A 300 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 2.2500 in
Outside Diameter	N/A 4.7500 in
Overall Width	N/A 2.7900 in
Radial Dynamic Load Capacity	N/A 84800 lbf
Radial Static Load Capacity	N/A 339500 lbf
Weight	N/A 7.72 lb

N/A Clevis Ends Hydraulic Cylinder Ends Kingpin Assemblies Linkages Shock Absorber Assemblies Tie Rod Ends
