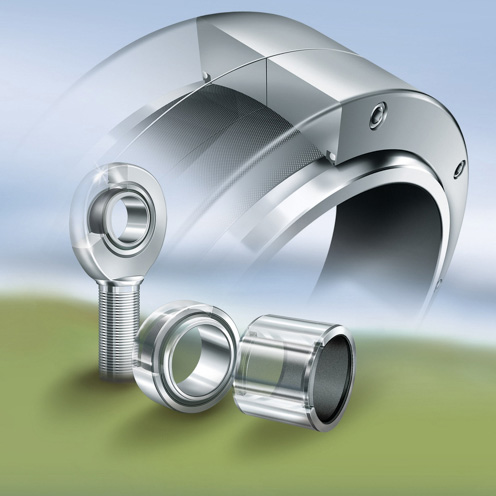

GIHNRK32-LO Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GIHNRK32-LO

Ball Material

 N/A Steel

Ball Width

 N/A 32 mm

Bore Diameter

 N/A 32 mm

Head Diameter

 N/A 70 mm

Head Width

 N/A 27 mm

Housing Material

 N/A Steel

Length to Ball Center

 N/A 80 mm

Lubrication Type

 N/A With Lubrication Fitting

Misalignment Angle

 N/A 4 º

Race Material

 N/A Steel

Radial Static Load Capacity

 N/A 98800 N

End Type

 N/A Female Threaded

Shank Thread Length

 N/A 37 mm

Shank Thread Size

 N/A M27 x 2

Standards Met

 N/A DIN-24 338 International Organization for Standardization (ISO)-6982

Thread Direction

 N/A Right Hand

Weight

 N/A 2.9 lb
