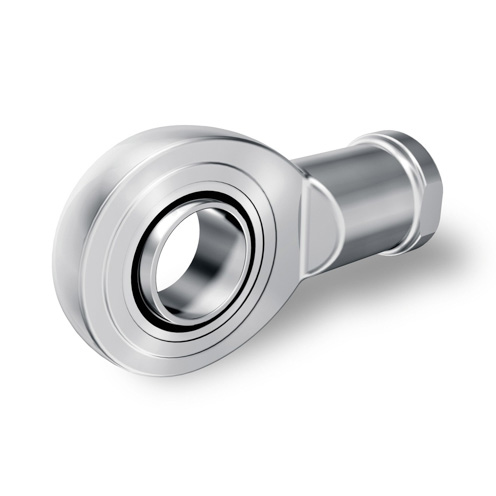

GIR40-DO-2RS Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GIR40-DO-2RS

Ball Material

 N/A Steel

Ball Width

 N/A 28 mm

Bore Diameter

 N/A 40 mm

Head Diameter

 N/A 92 mm

Head Width

 N/A 23 mm

Housing Material

 N/A Zinc-Plated Steel

Length to Ball Center

 N/A 142 mm

Lubrication Type

 N/A With Lubrication Fitting

Misalignment Angle

 N/A 7 º

Operating Temperature Range

 N/A -30 to 130 ºC

Race Material

 N/A Steel

Radial Static Load Capacity

 N/A 194000 N

End Type

 N/A Female Threaded

Shank Thread Length

 N/A 65 mm

Shank Thread Size

 N/A M39 x 3

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-4

Thread Direction

 N/A Right Hand

Weight

 N/A 5.54 lb
