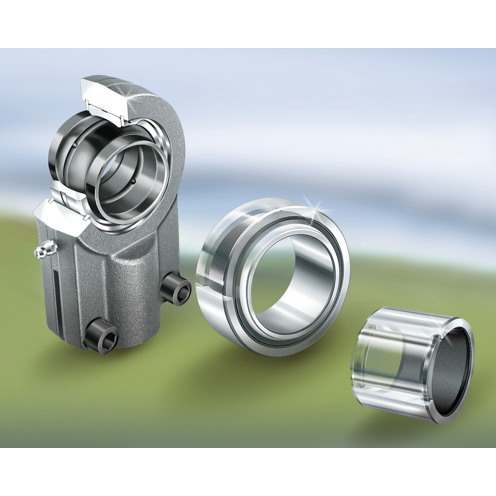

GIHRK35-DO Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GIHRK35-DO

Ball Material

 N/A Steel

Ball Width

 N/A 25 mm

Bore Diameter

 N/A 35 mm

Head Diameter

 N/A 78 mm

Head Width

 N/A 30 mm

Housing Material

 N/A Steel

Length to Ball Center

 N/A 70 mm

Lubrication Type

 N/A With Lubrication Fitting

Misalignment Angle

 N/A 6 º

Race Material

 N/A Steel

Radial Static Load Capacity

 N/A 140000 N

End Type

 N/A Female Threaded

Shank Thread Length

 N/A 29 mm

Shank Thread Size

 N/A M28 x 1.5

Thread Direction

 N/A Right Hand

Weight

 N/A 3.17 lb
