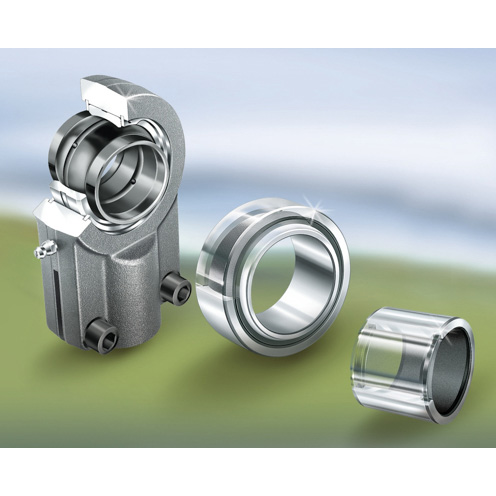

GIHRK100-DO Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GIHRK100-DO

Ball Material

 N/A Steel

Ball Width

 N/A 70 mm

Bore Diameter

 N/A 100 mm

Head Diameter

 N/A 230 mm

Head Width

 N/A 70 mm

Housing Material

 N/A Cast Iron

Length to Ball Center

 N/A 235 mm

Lubrication Type

 N/A With Lubrication Fitting

Misalignment Angle

 N/A 7 º

Race Material

 N/A Steel

Radial Static Load Capacity

 N/A 920000 N

End Type

 N/A Female Threaded

Shank Thread Length

 N/A 111 mm

Shank Thread Size

 N/A M110 x 2

Thread Direction

 N/A Right Hand
