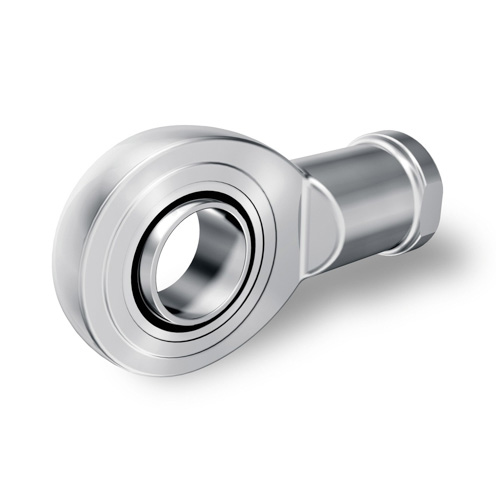

GIKR10-PW Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GIKR10-PW

Ball Material

 N/A Steel

Ball Width

 N/A 14 mm

Bore Diameter

 N/A 10 mm

Head Diameter

 N/A 28 mm

Head Width

 N/A 10.5 mm

Housing Material

 N/A Zinc-Plated Steel

Length to Ball Center

 N/A 43 mm

Lubrication Type

 N/A Maintenance Free/Self-Lubricating

Misalignment Angle

 N/A 13 º

Race Material

 N/A Bronze

Radial Static Load Capacity

 N/A 18500 N

End Type

 N/A Female Threaded

Shank Thread Length

 N/A 20 mm

Shank Thread Size

 N/A M10

Standards Met

 N/A DIN-24 335 International Organization for Standardization (ISO)-12 240-4 International Organization for Standardization (ISO)-8139

Thread Direction

 N/A Right Hand
