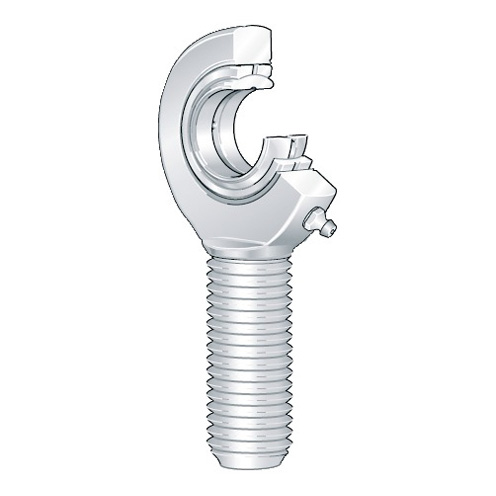

GAR12-DO Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GAR12-DO

Ball Material

 N/A Steel

Ball Width

 N/A 10 mm

Bore Diameter

 N/A 12 mm

Grade

 N/A Commercial Industrial

Head Diameter

 N/A 34 mm

Head Width

 N/A 8 mm

Housing Material

 N/A Zinc-Plated Steel

Length to Ball Center

 N/A 54 mm

Lubrication Type

 N/A No Fitting

Misalignment Angle

 N/A 11 º

Race Material

 N/A Steel

Radial Static Load Capacity

 N/A 30100 N

End Type

 N/A Male Threaded

Shank Thread Length

 N/A 28 mm

Shank Thread Size

 N/A M12 x 1.75

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-4

Thread Direction

 N/A Right Hand

Weight

 N/A 0.230 lb
