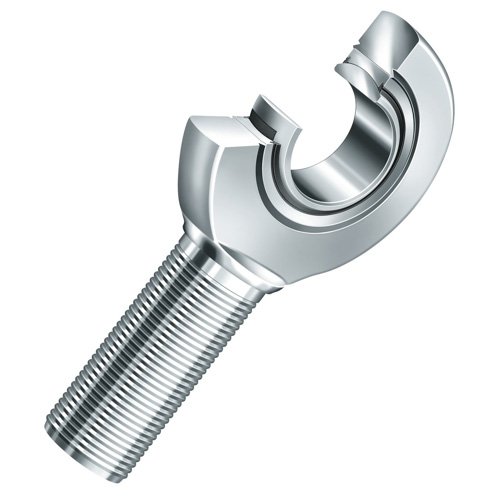

GAR15-UK Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GAR15-UK

Ball Material

 N/A Steel

Ball Width

 N/A 14 mm

Bore Diameter

 N/A 17 mm

Head Diameter

 N/A 46 mm

Head Width

 N/A 11 mm

Housing Material

 N/A Zinc-Plated Steel

Length to Ball Center

 N/A 69 mm

Lubrication Type

 N/A Maintenance Free/Self-Lubricating

Misalignment Angle

 N/A 10 º

Race Material

 N/A Polytetrafluoroethylene (PTFE) Composite

Radial Static Load Capacity

 N/A 56500 N

End Type

 N/A Male Threaded

Shank Thread Length

 N/A 36 mm

Shank Thread Size

 N/A M16

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-4

Thread Direction

 N/A Right Hand
