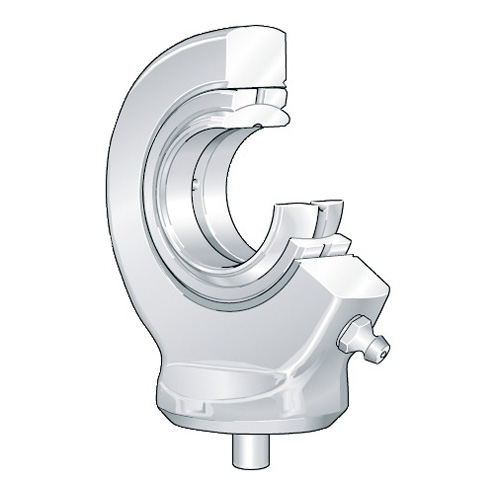

GK40-DO Elges® Rod End
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GK40-DO

Ball Material

 N/A Steel

Ball Width

 N/A 28 mm

Bore Diameter

 N/A 40 mm

Head Diameter

 N/A 92 mm

Head Width

 N/A 23 mm

Housing Material

 N/A Steel

Length to Ball Center

 N/A 69 mm

Lubrication Type

 N/A With Lubrication Fitting

Misalignment Angle

 N/A 7 º

Race Material

 N/A Steel

Radial Static Load Capacity

 N/A 155000 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-4
