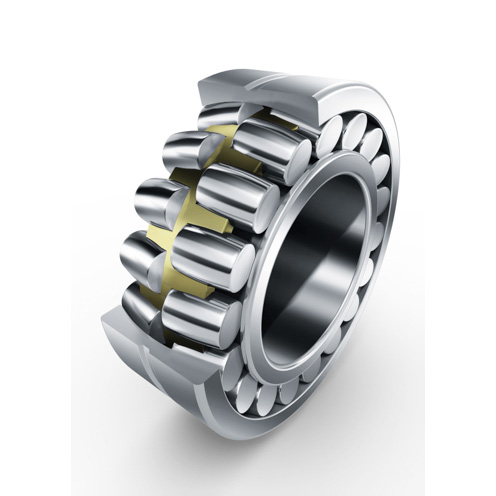

23192-MB Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 23192-MB

Bearing Material

 N/A Steel

Bore Diameter

 N/A 460 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 6900000 N

Fillet Radius

 N/A 6 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A Lubrication Groove and Holes

Maximum Speed

 N/A 880 rpm

Operating Temperature Range

 N/A -30 to 200 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 240 mm

Outside Diameter

 N/A 760 mm

Overall Width

 N/A 240 mm

Precision Rating

 N/A Not Rated

Series

 N/A 231

Static Load Rating

 N/A 11500000 N

Weight

 N/A 983.40 lb
