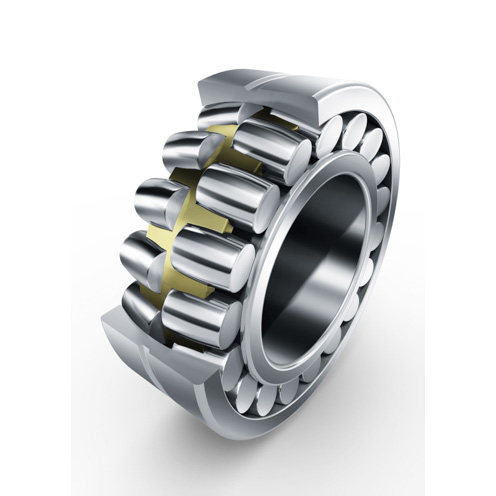

230/630-B-K-MB Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 230/630-B-K-MB

Bore Diameter

 N/A 630 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A Brass

Cage Type

 N/A Inner Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 6300000 N

Fillet Radius

 N/A 6 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 500 rpm

Operating Temperature Range

 N/A -30 to 200 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 212 mm

Outside Diameter

 N/A 920 mm

Overall Width

 N/A 212 mm

Precision Rating

 N/A Not Rated

Series

 N/A 230

Static Load Rating

 N/A 13700000 N

Weight

 N/A 1130.80 lb
