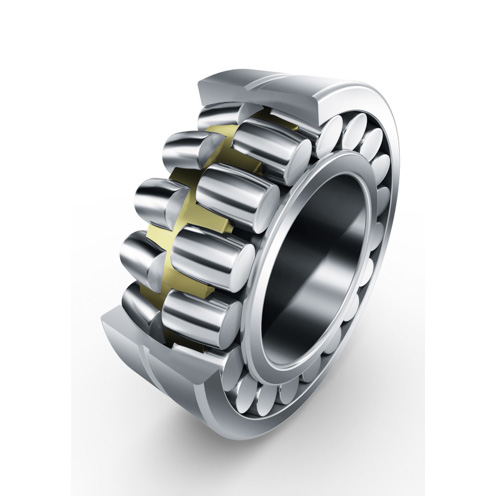

239/560BK.MB Double-Row Spherical
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 239/560BK.MB

Bore Diameter

 N/A 560 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A Brass

Cage Type

 N/A Inner Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 3100000 N

Fillet Radius

 N/A 4 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A Lubrication Groove and Holes

Maximum Speed

 N/A 600 rpm

Number of Rows

 N/A Double-Row

Operating Temperature Range

 N/A -30 to 200 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 140 mm

Outside Diameter

 N/A 750 mm

Overall Width

 N/A 140 mm

Precision Rating

 N/A Not Rated

Series

 N/A 239

Static Load Rating

 N/A 7650000 N

Weight

 N/A 385.00 lb
