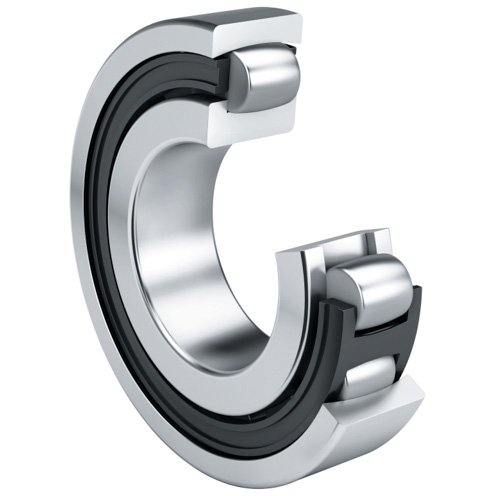

20209-TVP Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 20209-TVP

Bore Diameter

 N/A 45 mm

Bore Type

 N/A Straight

Cage Material

 N/A Polyamide

Cage Type

 N/A Inner Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 52000 N

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 4000 rpm

Operating Temperature [Max]

 N/A +120 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 19 mm

Outside Diameter

 N/A 85 mm

Overall Width

 N/A 19 mm

Precision Rating

 N/A Not Rated

Series

 N/A 202

Static Load Rating

 N/A 57000 N

Weight

 N/A 1.09 lb
