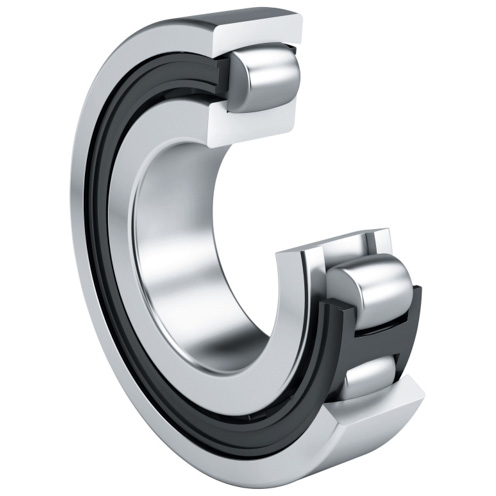

20213-TVP Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 20213-TVP

Bore Diameter

 N/A 65 mm

Bore Type

 N/A Straight

Cage Material

 N/A Polyamide

Cage Type

 N/A Inner Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 95000 N

Fillet Radius

 N/A 1.5 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 3000 rpm

Operating Temperature [Max]

 N/A +120 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 23 mm

Outside Diameter

 N/A 120 mm

Overall Width

 N/A 23 mm

Precision Rating

 N/A Not Rated

Series

 N/A 202

Static Load Rating

 N/A 116000 N

Weight

 N/A 2.44 lb
