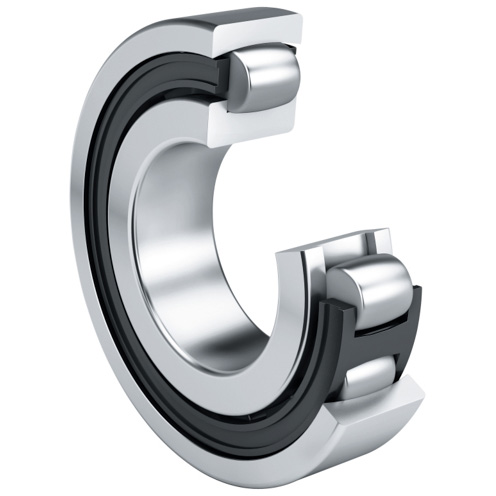

20310-TVP Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 20310-TVP

Bore Diameter

 N/A 50 mm

Bore Type

 N/A Straight

Cage Material

 N/A Polyamide

Cage Type

 N/A Inner Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 108000 N

Fillet Radius

 N/A 2 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 3400 rpm

Operating Temperature [Max]

 N/A +120 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 27 mm

Outside Diameter

 N/A 110 mm

Overall Width

 N/A 27 mm

Precision Rating

 N/A Not Rated

Series

 N/A 203

Static Load Rating

 N/A 118000 N

Weight

 N/A 2.66 lb
