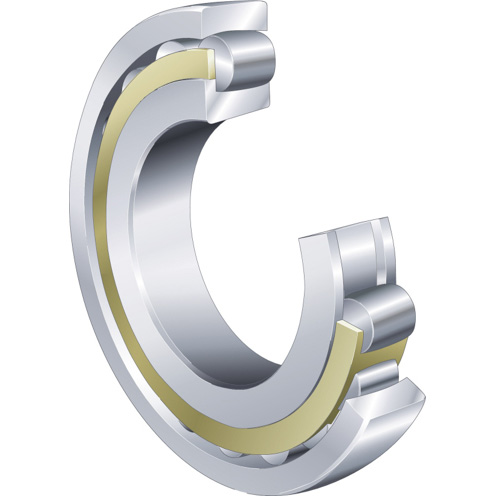

20314-MB Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 20314-MB

Bore Diameter

 N/A 70 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Cage Type

 N/A Inner Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 183000 N

Fillet Radius

 N/A 2.1 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 2600 rpm

Operating Temperature Range

 N/A -30 to 150 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 35 mm

Outside Diameter

 N/A 150 mm

Overall Width

 N/A 35 mm

Precision Rating

 N/A Not Rated

Series

 N/A 203

Static Load Rating

 N/A 216000 N

Weight

 N/A 6.79 lb
