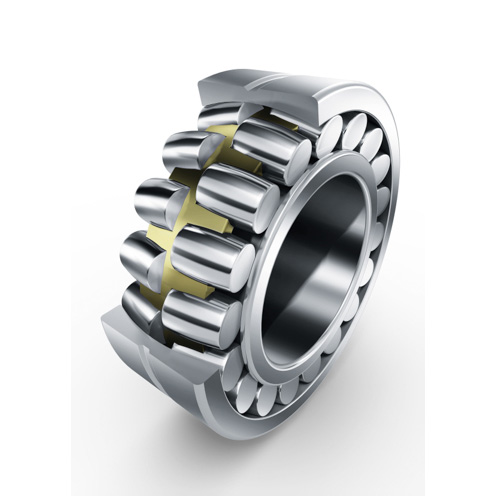

230S.1000 Split Spherical Roller
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 230S.1000

Bore Diameter

 N/A 254 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Cage Type

 N/A Outer Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 1460 kN

Fillet Radius

 N/A 4 mm

Finish/Coating

 N/A Uncoated

Inner Ring Width

 N/A 170 mm

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A Lubrication Groove and Holes

Maximum Speed

 N/A 620 rpm

Outer Ring Type

 N/A Split

Outer Ring Width

 N/A 106 mm

Outside Diameter

 N/A 420 mm

Overall Width

 N/A 170 mm

Precision Rating

 N/A Not Rated

Series

 N/A 230

Static Load Rating

 N/A 2450 kN

Weight

 N/A 165.00 lb
