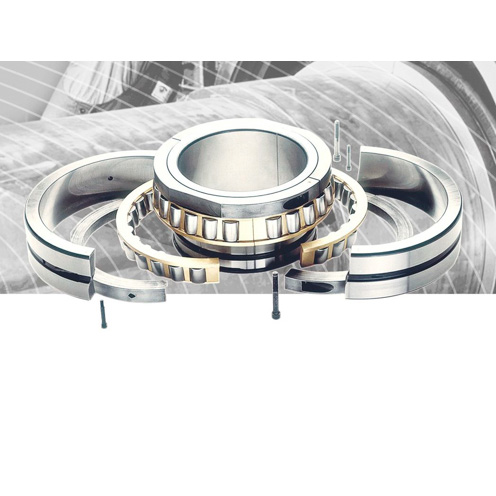

222S.207 Split Spherical Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 222S.207

Bore Diameter

 N/A 2.4375 in

Bore Type

 N/A Straight

Cage Material

 N/A Polyamide

Cage Type

 N/A Outer Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 173 kN

Fillet Radius

 N/A 1.5 mm

Finish/Coating

 N/A Uncoated

Inner Ring Width

 N/A 60 mm

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A Lubrication Groove and Holes

Maximum Speed

 N/A 2400 rpm

Outer Ring Type

 N/A Split

Outer Ring Width

 N/A 31 mm

Outside Diameter

 N/A 130 mm

Overall Width

 N/A 60 mm

Precision Rating

 N/A Not Rated

Series

 N/A 222S

Static Load Rating

 N/A 208 kN

Weight

 N/A 6.1600 lb
