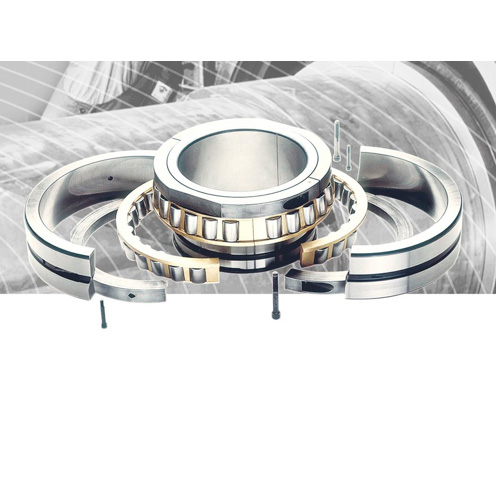

222S.715 Split Spherical Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 222S.715

Bore Diameter

 N/A 7.9375 in

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Cage Type

 N/A Outer Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 1340 kN

Fillet Radius

 N/A 4 mm

Finish/Coating

 N/A Uncoated

Inner Ring Width

 N/A 162 mm

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A Lubrication Groove and Holes

Maximum Speed

 N/A 560 rpm

Outer Ring Type

 N/A Split

Outer Ring Width

 N/A 108 mm

Outside Diameter

 N/A 400 mm

Overall Width

 N/A 162 mm

Precision Rating

 N/A Not Rated

Series

 N/A 222S

Static Load Rating

 N/A 1900 kN

Weight

 N/A 168.30 lb
