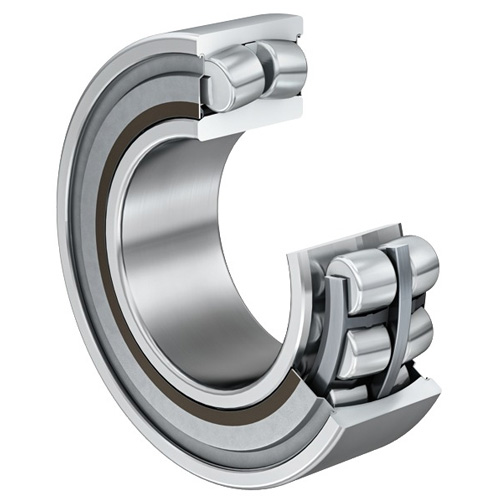

22340A.MA.T41A Spherical Roller
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 22340A.MA.T41A

Bearing Material

 N/A Steel

Bore Diameter

 N/A 200 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 2440000 N

Fillet Radius

 N/A 4 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C4

Lubrication Hole Type

 N/A Lubrication Groove and Holes

Maximum Speed

 N/A 1820 rpm

Operating Temperature Range

 N/A -30 to 200 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 138 mm

Outside Diameter

 N/A 420 mm

Overall Width

 N/A 138 mm

Precision Rating

 N/A Not Rated

Series

 N/A 223

Static Load Rating

 N/A 2950000 N

Weight

 N/A 205.70 lb
