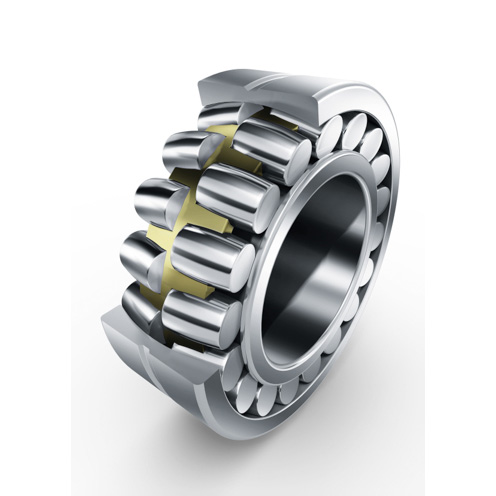

Item # 02297867, FAG (Schaeffler) 233 Series 120 Millimeter (mm) Bore Diameter Spherical Roller Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A FAG (Schaeffler)
Manufacturer Part Number	N/A 23324-AS-MA-T41A
Bore Diameter	N/A 120 mm
Bore Type	N/A Straight
Cage Material	N/A Brass
Cage Type	N/A Outer Ring Guided
Closure Type	N/A Open
Dynamic Load Rating	N/A 1020000 N
Fillet Radius	N/A 2.5 mm
Finish/Coating	N/A Uncoated
Internal Clearance	N/A C0
Lubrication Hole Type	N/A No Holes
Maximum Speed	N/A 2400 rpm
Operating Temperature Range	N/A -30 to 200 ºC
Outer Ring Type	N/A Not Split
Outer Ring Width	N/A 106 mm
Outside Diameter	N/A 260 mm
Overall Width	N/A 106 mm
Precision Rating	N/A Not Rated
Series	N/A 233
Static Load Rating	N/A 1430000 N
Weight	N/A 63.49 lb
