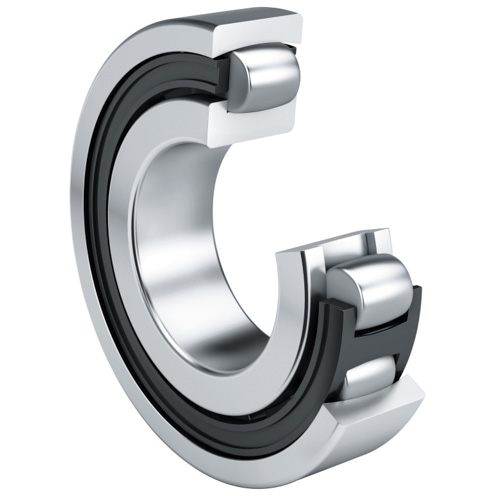

20307-TVP Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 20307-TVP

Bore Diameter

 N/A 35 mm

Bore Type

 N/A Straight

Cage Material

 N/A Polyamide

Cage Type

 N/A Inner Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 58500 N

Fillet Radius

 N/A 1.5 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 4500 rpm

Operating Temperature [Max]

 N/A +120 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 21 mm

Outside Diameter

 N/A 80 mm

Overall Width

 N/A 21 mm

Precision Rating

 N/A Not Rated

Series

 N/A 203

Static Load Rating

 N/A 61000 N

Weight

 N/A 1.11 lb
