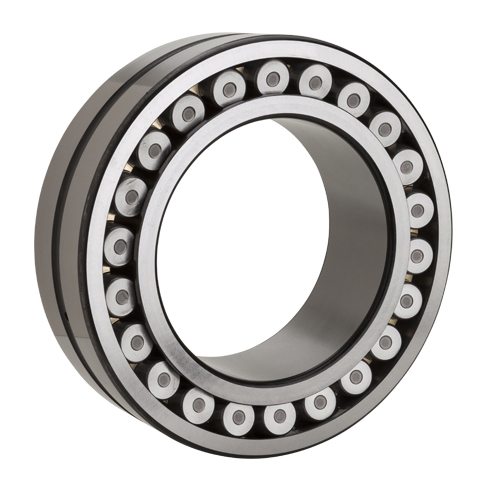

23130EAW33 Spherical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A 23130EAW33

Series

 N/A 231

Bearing Material

 N/A Through Hardened Steel

Bore Diameter

 N/A 150 mm

Bore Type

 N/A Round

Cage Material

 N/A Steel

Cage Type

 N/A Pressed

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 238000 lbf

Fillet Radius

 N/A 2.1 mm

Finish/Coating

 N/A Uncoated

Harmonization Code

 N/A 8482.30.0080

Inside Ring Width

 N/A 80 mm

Internal Clearance

 N/A CN

Lubrication Hole Type

 N/A Lubrication Groove and Holes

UPC Code

 N/A 4547359750423

Maximum Speed

 N/A 2000 rpm

Operating Temperature Range

 N/A -40 to 400 ºF

Outside Ring Type

 N/A Not Split

Outside Ring Width

 N/A 80 mm

Outside Diameter

 N/A 250 mm

Overall Width

 N/A 80 mm

Precision Rating

 N/A Not Rated

Static Load Rating

 N/A 305000 lbf

Weight

 N/A 33.95 lb
