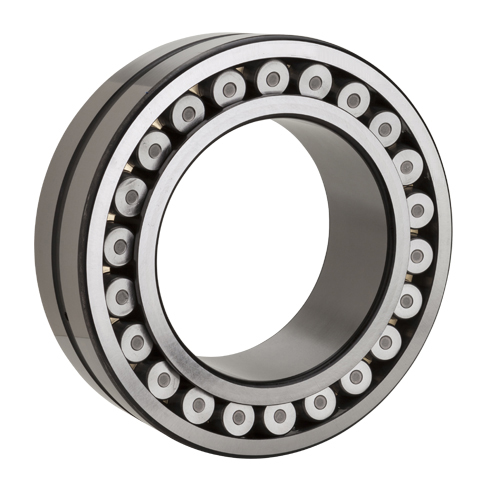

24024EMW33 Spherical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A 24024EMW33

Series

 N/A 240

Bearing Material

 N/A Through Hardened Steel

Bore Diameter

 N/A 120 mm

Bore Type

 N/A Round

Cage Material

 N/A Brass

Cage Type

 N/A Machined

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 118000 lbf

Fillet Radius

 N/A 2 mm

Finish/Coating

 N/A Uncoated

Harmonization Code

 N/A 8482.30.0080

Inside Ring Width

 N/A 60 mm

Internal Clearance

 N/A CN

Lubrication Hole Type

 N/A Lubrication Groove and Holes

UPC Code

 N/A 4547359810653

Maximum Speed

 N/A 2600 rpm

Operating Temperature Range

 N/A -40 to 400 ºF

Outside Ring Type

 N/A Not Split

Outside Ring Width

 N/A 60 mm

Outside Diameter

 N/A 180 mm

Overall Width

 N/A 60 mm

Precision Rating

 N/A Not Rated

Static Load Rating

 N/A 163000 lbf

Weight

 N/A 12.08 lb
