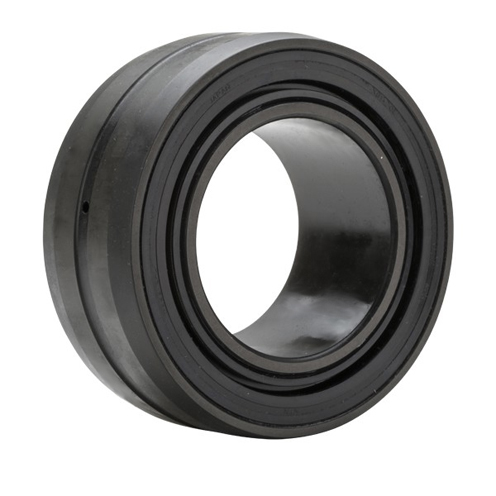

MX-W22228EALLKW33C3 Spherical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A MX-W22228EALLKW33C3

Series

 N/A 222

Bearing Material

 N/A Through Hardened Steel (IR/OR are phosphate coated)

Bore Diameter

 N/A 140 mm

Bore Type

 N/A Tapered

Cage Material

 N/A Steel

Cage Type

 N/A Pressed

Closure Type

 N/A Double Sealed

Dynamic Load Rating

 N/A 205000 lbf

Fillet Radius

 N/A 1.5 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 88 mm

Internal Clearance

 N/A C3

Lubrication Hole Type

 N/A Lubrication Groove and Holes

UPC Code

 N/A 4547359804188

Maximum Speed

 N/A 2500 rpm

Operating Temperature Range

 N/A -40 to 400 ºF

Outside Ring Type

 N/A Not Split

Outside Ring Width

 N/A 88 mm

Outside Diameter

 N/A 250 mm

Overall Width

 N/A 88 mm

Precision Rating

 N/A Standard

Static Load Rating

 N/A 227000 lbf

Weight

 N/A 36.16 lb
