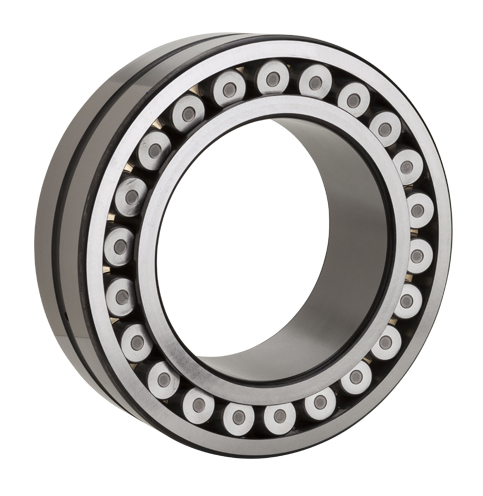

23976W33 Spherical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A 23976W33

Series

 N/A 239

Bearing Material

 N/A Through Hardened Steel

Bore Diameter

 N/A 380 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Cage Type

 N/A Machined

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 1560000 N

Fillet Radius

 N/A 3 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 106 mm

Internal Clearance

 N/A CN

Lubrication Hole Type

 N/A Lubrication Groove and Holes

Maximum Speed

 N/A 770 rpm

Outside Ring Type

 N/A Not Split

Outside Ring Width

 N/A 106 mm

Outside Diameter

 N/A 520 mm

Overall Width

 N/A 106 mm

Precision Rating

 N/A Not Rated

Static Load Rating

 N/A 3550000 N

Weight

 N/A 148.94 lb
