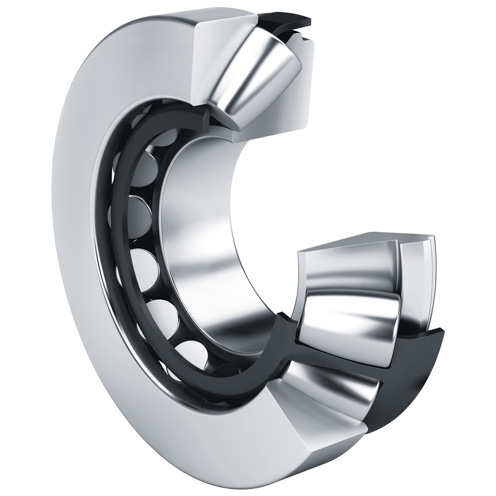

29252-E1-MB Spherical Roller Thrust
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 29252-E1-MB

Bore Diameter

 N/A 260 mm

Cage Material

 N/A Brass

Dynamic Load Rating

 N/A 1040 kN

Fillet Radius

 N/A 2 mm

Maximum Speed

 N/A 1800 rpm

Operating Temperature Range

 N/A -30 to 200 ºC

Outside Diameter

 N/A 360 mm

Overall Width

 N/A 60 mm

Separable Type

 N/A Separable Bearing

Series

 N/A 292

Static Load Rating

 N/A 4550 kN

Weight

 N/A 40.26 lb
