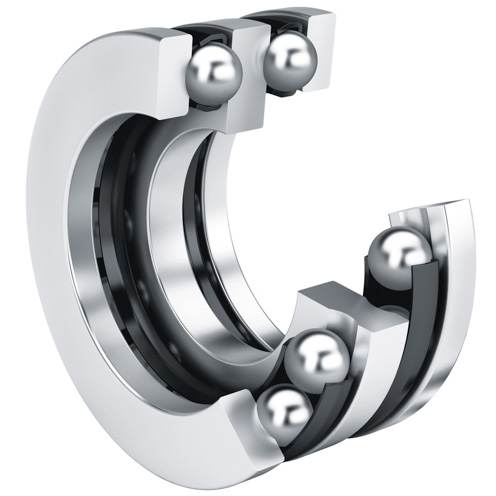

52206 Double-Direction Thrust Ball
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 52206

Bearing Material

 N/A Steel

Bore Diameter

 N/A 25 mm

Cage Material

 N/A Steel

Dynamic Load Rating

 N/A 5700 lbf

Fillet Radius

 N/A 0.6 mm

Maximum Speed

 N/A 4800 rpm

Operating Temperature Range

 N/A -30 to 150 ºC

Outside Diameter

 N/A 52 mm

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 29 mm

Precision Rating

 N/A Not Rated

Race

 N/A Flat

Separable or Banded

 N/A Separable

Series

 N/A 52200

Standards Met

 N/A DIN 711 International Organization for Standardization (ISO) 104

Static Load Rating

 N/A 10700 lbf

Thrust Bearing Type

 N/A Double-Direction

Weight

 N/A 0.600 lb
