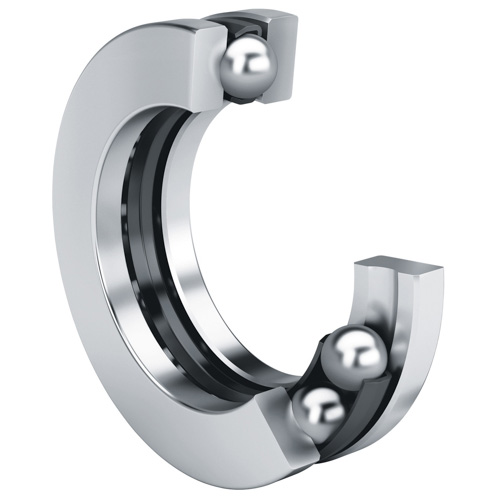

53224 Single-Direction Thrust Ball
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 53224

Bore Diameter

 N/A 120 mm

Bore Type

 N/A Round

Cage Material

 N/A Steel

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 134000 N

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Maximum Speed

 N/A 2550 rpm

Number of Rows

 N/A Single-Row

Operating Temperature Range

 N/A -30 to 150 ºC

Outer Ring Width

 N/A 40.8 mm

Outside Diameter

 N/A 170 mm

Overall Width

 N/A 1.5938 in

Precision Rating

 N/A Not Rated

Fill Slot

 N/A Non-Fill Slot

Series

 N/A 532

Standards Met

 N/A DIN 711 International Organization for Standardization (ISO) 104

Static Load Rating

 N/A 390000 N

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 6.18 lb
