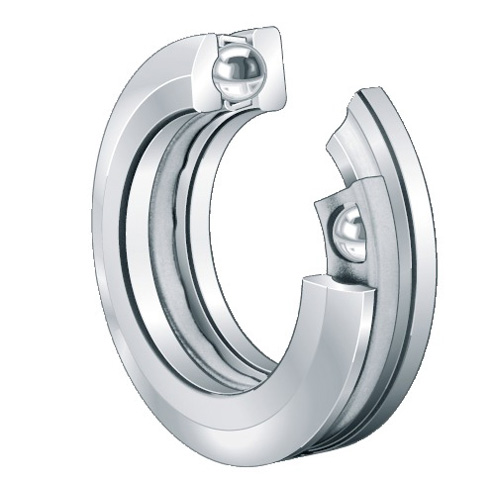

4107 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 4107

Bearing Material

 N/A Steel

Bore Diameter

 N/A 35 mm

Dynamic Load Rating

 N/A 7980 lbf

Maximum Speed

 N/A 4200 rpm

Outside Diameter

 N/A 62 mm

Outside Diameter Design

 N/A Sphered

Overall Width

 N/A 21 mm

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Series

 N/A 4100

Static Load Rating

 N/A 15100 lbf

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 0.63 lb
