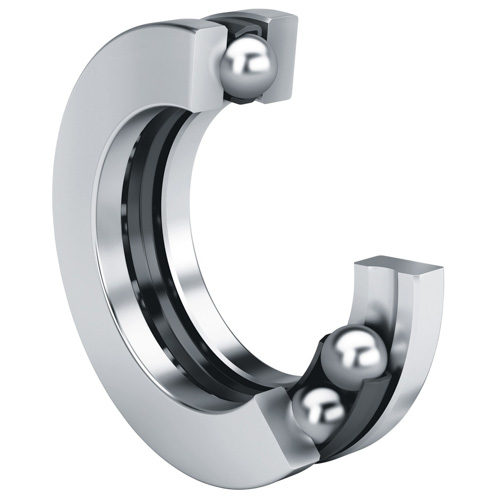

908 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 908

Bearing Material

 N/A Steel

Bore Diameter

 N/A 40 mm

Dynamic Load Rating

 N/A 8540 lbf

Maximum Speed

 N/A 3800 rpm

Outside Diameter

 N/A 64 mm

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 18 mm

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Series

 N/A 900

Static Load Rating

 N/A 17500 lbf

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 0.56 lb
