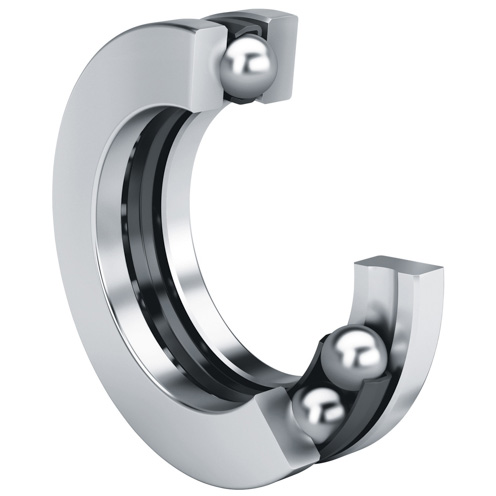

915 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 915

Bearing Material

 N/A Steel

Bore Diameter

 N/A 75 mm

Dynamic Load Rating

 N/A 16900 lbf

Maximum Speed

 N/A 2100 rpm

Outside Diameter

 N/A 110 mm

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 27 mm

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Series

 N/A 900

Static Load Rating

 N/A 44000 lbf

Thrust Bearing Type

 N/A Single-Direction
