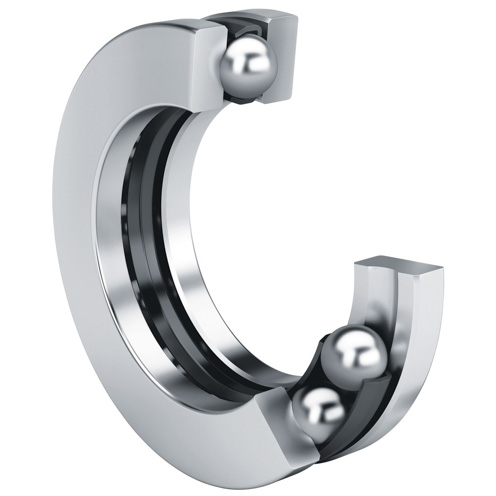

917 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 917

Bearing Material

 N/A Steel

Bore Diameter

 N/A 85 mm

Dynamic Load Rating

 N/A 24000 lbf

Maximum Speed

 N/A 1900 rpm

Outside Diameter

 N/A 125 mm

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 30.5 mm

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Series

 N/A 900

Static Load Rating

 N/A 62000 lbf

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 3.24 lb
