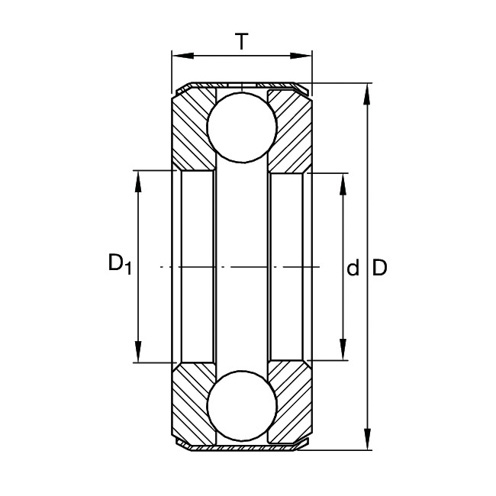

B15 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A B15

Bearing Material

 N/A Steel

Bore Diameter

 N/A 1.3750 in

Dynamic Load Rating

 N/A 9500 lbf

Maximum Speed

 N/A 3000 rpm

Outside Diameter

 N/A 2.4690 in

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 0.7500 in

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Banded

Series

 N/A B

Static Load Rating

 N/A 20100 lbf

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 0.63 lb
