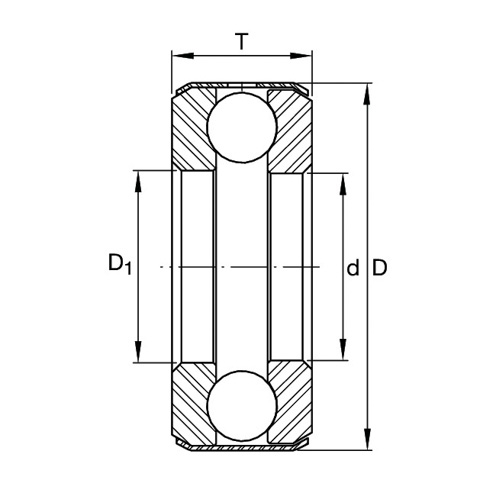

B40 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A B40

Bearing Material

 N/A Steel

Bore Diameter

 N/A 3.0000 in

Dynamic Load Rating

 N/A 22100 lbf

Maximum Speed

 N/A 1500 rpm

Outside Diameter

 N/A 4.7190 in

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 1.1250 in

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Banded

Series

 N/A B

Static Load Rating

 N/A 59000 lbf

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 3.0900 lb
