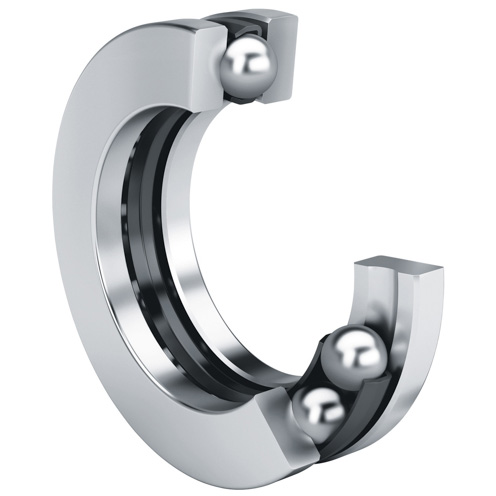

4426 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 4426

Bearing Material

 N/A Steel

Bore Diameter

 N/A 2.0625 in

Dynamic Load Rating

 N/A 6970 lbf

Maximum Speed

 N/A 3000 rpm

Outside Diameter

 N/A 3.1875 in

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 0.8750 in

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Series

 N/A 4400

Static Load Rating

 N/A 17300 lbf

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 1.1 lb
