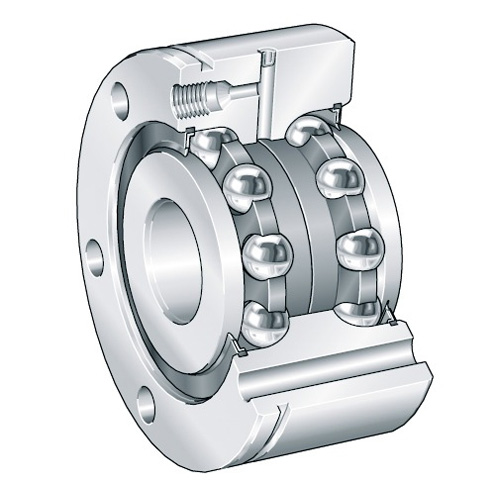

Item # 04663652, INA (Schaeffler) ZKLF Series 35 Millimeter (mm) Bore Diameter Ball Thrust Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A ZKLF 3590 2RS PE
Bore Diameter	N/A 35 mm
Cage Material	N/A Plastic
Dynamic Load Rating	N/A 9200 lbf
Maximum Speed	N/A 2000 rpm
Operating Temperature Range	N/A -30 to 120 ºC
Outside Diameter	N/A 90 mm
Outside Diameter Design	N/A Straight
Overall Width	N/A 34 mm
Precision Rating	N/A ABEC 5 (International Organization for Standardization (ISO) Class 5)
Series	N/A ZKLF
Static Load Rating	N/A 20000 lbf
Thrust Bearing Type	N/A Double-Direction

N/A Ball Screw Support
