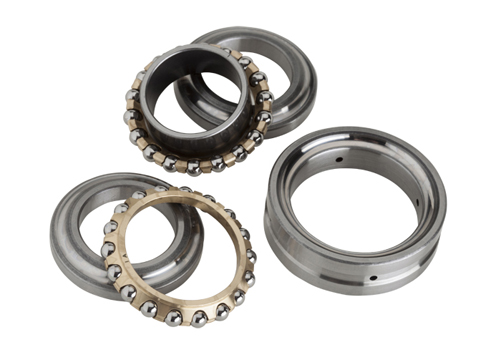

Item # 03949207, NTN 5620 Series 200 Millimeter (mm) Outside Diameter Ball Thrust Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A NTN Bearing Company
Manufacturer Part Number	N/A 562026M/GNP5
Series	N/A 5620
Bearing Material	N/A High Carbon Chrome Steel
Bore Diameter	N/A 134 mm
Cage Material	N/A Brass
Closure Type	N/A Open
Dynamic Load Rating	N/A 139000 N
Fillet Radius	N/A 2 mm
Finish/Coating	N/A Uncoated
Internal Clearance	N/A C0
Maximum Speed	N/A 2800 rpm
Operating Temperature Range	N/A -40 to 120 ºC
Outside Diameter	N/A 200 mm
Outside Diameter Design	N/A Straight
Overall Width	N/A 84 mm
Precision Rating	N/A International Organization for Standardization (ISO) Class 5
Separable or Banded	N/A Separable
Static Load Rating	N/A 460000 N
Thrust Bearing Type	N/A Double-Direction
