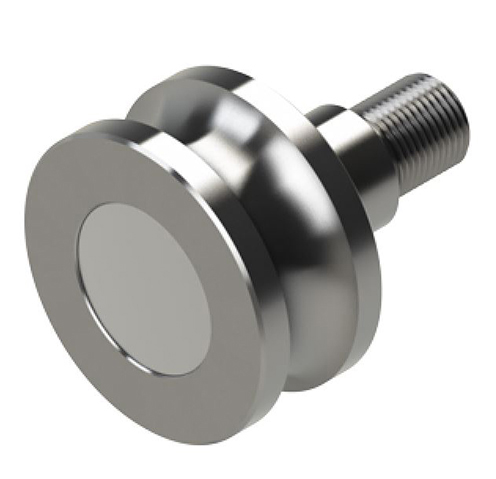

Item # 09363068, PCI Procal Inc. UTRE Series 1.6500 Inch (in) Roller Width and 3150 Pound Force (lbf) Axial Static Load Capacity U-Groove Track Roller On Motion Industries, Inc.

Unit of Measure

Specifications | Features & Benefits

Supplier Name	N/A PCI Procal Inc.
Manufacturer Part Number	N/A UTRE-3.50E-SS
Series	N/A UTRE
Axial Dynamic Load Capacity	N/A 3540 lbf
Axial Static Load Capacity	N/A 3150 lbf
Bearing Element	N/A Tapered Rollers - Two Rows
Closure Type	N/A Sealed
Eccentric Bushing Length	N/A 0.9800 in
Eccentric Stud Diameter	N/A 1.1870 in
Eccentricity	N/A 0.03 in
Lubrication Type	N/A Sealed for Life
UPC Code	N/A 841946108166
Operating Temperature Range	N/A 250 ºF
Point Diameter	N/A 3.0000 in
Radial Dynamic Load Capacity	N/A 11957 lbf
Radial Static Load Capacity	N/A 7200 lbf
Roller Diameter	N/A 3.5000 in
Roller Material	N/A Stainless Steel
Roller Shape	N/A U-Groove
Roller Width	N/A 1.6500 in
Seal Type	N/A Rubber Dual Lip
Stud Diameter	N/A 0.7500 in
Stud Length	N/A 2.0000 in
Thread Size	N/A 3/4-16
Weight	N/A 4.05 lb
Width to Groove Center	N/A 0.8800 in

N/A

U-Grooved Track Rollers provide multi-direction location and are used with round bar tracks which reduce buildup on the rolling surface
Like most locational units, U-Grooved rollers are used in tandem with plain rollers to prevent overload from misalignment
