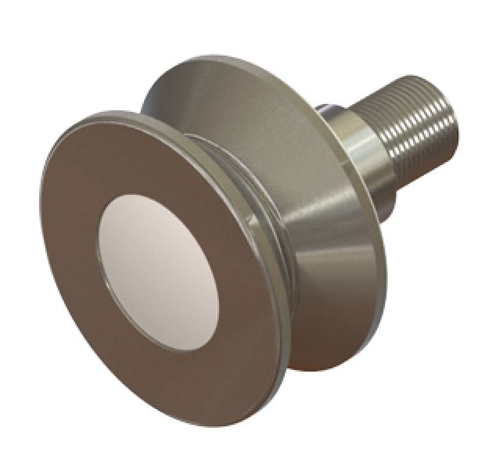

Item # 07148455, PCI Procal Inc. VTRE Series 7.5000 Inch (in) Roller Diameter V-Groove Track Roller On Motion Industries, Inc.

Unit of Measure

Specifications | Features & Benefits

Supplier Name	N/A PCI Procal Inc.
Manufacturer Part Number	N/A VTRE-7.50
Series	N/A VTRE
Axial Dynamic Load Capacity	N/A 14150 lbf
Axial Static Load Capacity	N/A 32900 lbf
Bearing Element	N/A Tapered Rollers - Two Rows
Closure Type	N/A Sealed
Eccentricity	N/A 0.060 in
Lubrication Type	N/A Sealed for Life
UPC Code	N/A 841946108821
Operating Temperature [Max]	N/A 250 ºF
Point Diameter	N/A 6.0000 in
Radial Dynamic Load Capacity	N/A 35830 lbf
Radial Static Load Capacity	N/A 56200 lbf
Roller Diameter	N/A 7.5000 in
Roller Material	N/A Carbon Steel
Roller Shape	N/A V-Grooved
Roller Width	N/A 2.9400 in
Seal Type	N/A Rubber Dual Lip
Stud Diameter	N/A 2.5000 in
Stud Length	N/A 5.5000 in
Thread Length	N/A 2.6250 in
Thread Size	N/A 2-1/2-12
Weight	N/A 41.170 lb
Width to Groove Center	N/A 1.5000 in

N/A

V-Grooved Track Rollers provide dual direction location and are used with "V" tracks which reduce buildup on the rolling surface
Like most locational units, V-Grooved rollers are used in tandem with plain rollers to prevent overload from misalignment
