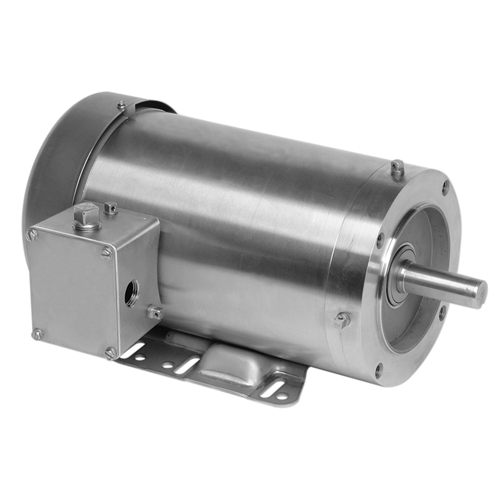

Item # 02899543, Nidec 1755 Revolutions per Minute (rpm) Base Speed Stainless Steel General Purpose Washdown Duty Motor On Motion Industries, Inc.

Unit of Measure

Specifications | Applications | Features & Benefits

Supplier Name	N/A US Motors (Nidec)
Manufacturer Part Number	N/A WDS12S2AHC
Ambient Temperature	N/A 40 ºC
Base Speed	N/A 1755 rpm
Duty/Condition Type	N/A Washdown
Enclosure Type	N/A Totally Enclosed Fan Cooled (TEFC)
Frame Material	N/A Stainless Steel
Frame Size	N/A 56HC
Frequency	N/A 60 Hz
Full Load Current	N/A 1.00 A1.80 to 1.90 A
Full Load Efficiency	N/A 78.50 %
Harmonization Code	N/A 8501.51.4040
Insulation Class	N/A F
Type	N/A General Purpose Motor (Stainless Steel)
Power for 4 Poles	N/A 1/2 hp
Phase	N/A 3
Number of Poles	N/A 4
Supply Voltage	N/A 208 to 230 V460 V
Mounting Type	N/A C-Face Flange Footed
National Electrical Manufacturers Association (NEMA) Design Class	N/A B
Shaft Diameter	N/A 0.63 in
Standards Met	N/A Baking Industry Sanitation Standards Committee (BISSC) National Electrical Manufacturers Association (NEMA)
Synchronous Speed	N/A 1800 rpm
Weight	N/A 34.00 lb

N/A Bakeries Canners Dairies Drug and Cosmetic Manufacturers for Sanitary Food Processing Meat Packers

N/A

All stainless steel external construction
40 ºC ambient, NEMA design B
Inverter Grade® insulation system (meets NEMA MG-1 part 31)
303 stainless steel shaft
Multiple stainless steel T-type drains
Totally enclosed fan cooled (TEFC) except where noted
Rust inhibitor on rotor
BISSC® certified
VBX® bearing isolators by inpro / seal on drive end
Double sealed ball bearings
Laser-etched oversized nameplate
RTV-sealed lead exit holes
Moisture-resistant gasketed conduit box with NPT lead holes
Easy-to-read connection leads
208-230 / 460V three phase
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors
