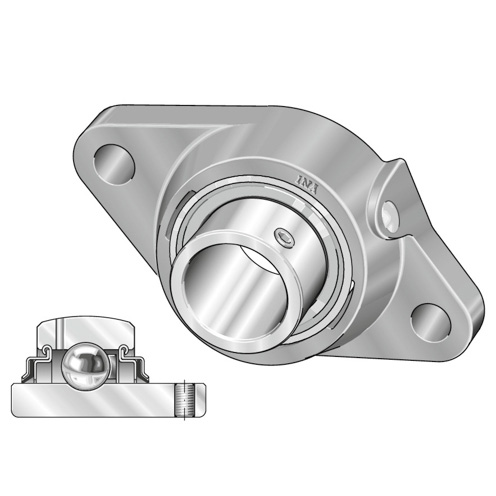

RCJTY2 Two-Bolt Flanged Unit
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A RCJTY2

Bolt Center-to-Center Length

 N/A 184 mm

Bore Diameter

 N/A 2.0000 in

Bore Type

 N/A Round

Duty Type

 N/A Standard Duty

Expansion Type

 N/A Non-Expansion Bearing (Fixed)

Finish/Coating

 N/A Powder Coated

Housing Material

 N/A Cast Iron

Length Through Bore

 N/A 64.4 mm

Locking Device

 N/A Set Screw

Lubrication Type

 N/A Relubricatable

Mounting Type

 N/A 2-Bolt Flange

Overall Length/Diameter

 N/A 116 mm

Radial Dynamic Load Capacity

 N/A 9800 lbf

Radial Static Load Capacity

 N/A 6600 lbf

Replacement Bearing

 N/A GY1200KRRB

Seal Type

 N/A Double Lip

Series

 N/A RCJTY

Standards Met

 N/A American Bearing Manufacturers Association (ABMA) American Society for Testing and Materials (ASTM) A48 Class 30

Weight

 N/A 7.66 lb
